Prime™ 16HD Reef
Smart Reef LED
Prime Freshwater
Smart Freshwater LED
Prime Fuge
Smart Refugium LED
Prime Sol
Smart Aquarium LED
HD Power
No longer are you limited to using a fixed amount of power per channel, the Prime 16HD dynamically adjusts power available to each color, borrowing power from the colors you’re not utilizing. Giving you the most vivid spectrum your tank has ever seen.
HD Spectrum
The Prime 16 HD Series is capable of producing a limitless number of spectral combinations to fit your tank’s exacting needs.
Dedicated Moonlight
A dedicated moonlight channel simulates natural lunar color and intensity.
Simple Built-in Control
All AI devices include smart control standard. Choose from the myAI® or Mobius app on any iOS or Android device to easily set up or program your AI equipment. Add Neptune Fusion control via Apex with Apex and MXM module.
The World’s Most Popular Reef LEDs
The newest innovation in the Prime line from AquaIllumination®, the Prime 16 HD Series brings more power and color where you want it, plus the freedom to use your smartphone as a controller.
myAI®

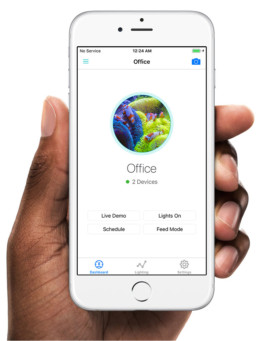

Dashboard
Each tank has a dashboard with easy-to-access quick keys for turning your lights on/off or changing the mode.
myAI®
Schedule Mode
Our intuitive schedule mode is so easy to program you’ll have plenty of time for more important tasks, like enjoying your corals.
myAI®
Schedule Mode: Easy Setup
Want an even easier way to program your lights? We’ve got you covered. Our Easy Setup wizard is a breeze.
myAI®
Manual Mode: Kelvin
Set your lights to the exact color temperature your corals need with our handy Kelvin wheel.
myAI®

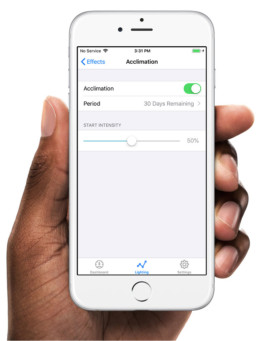

Acclimation
Installing new equipment can be stressful for your livestock. Acclimation mode provides the gentle transition they need to adapt and thrive.
Tank Mount
Easily mount your AI Prime® on your rimmed or rimless tank with the adjustable Prime Tank Mount. The innovative ball joint makes it simple to tilt and turn your Prime to get the optimal light for your corals. Made of high-quality brushed aluminum it will look great on any setup. Comes in black or silver.
Hanging Kit
The Prime Hanging Kit from AI is an elegant way to suspend your light above your tank. The unique ball joint makes it a snap to tilt and turn your Prime for optimal light coverage. Made of high-quality brushed aluminum in black or silver.

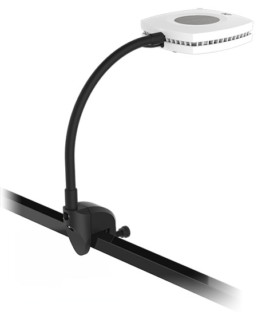

Flex Arm
A silicone-coated flex arm makes for an attractive and sturdy solution for mounting your AI Prime™. Our most flexible mount for a rimmed or rimless tank. Wire-management clips are included.
Available in 12 and 18in. lengths.
Power Output
With a spread of 24″ x 24″, the AI Prime® 16HD has a peak PAR of 100µMol at a depth of 24 inches, perfect for the small to medium reef tank. Drawing a maximum of 55 watts from the wall, it follows in the family’s efficient footsteps.
Optics
The AI Prime® 16HD comes standard with TIR lenses giving you the best balance of power and spread. Our lens optics are custom designed, boasting greater than 90% optical efficiency and including a diffuse exit surface to provide improved color blending.
LEDs
The AI Prime® 16HD utilizes the latest LED technology from leading manufacturers, arranged to provide the best performance.
- 4 – Cool White
- 4 – Blue
- 4 – Royal Blue
- 1 – Photo Red
- 1 – Green
- 1 – Violet
- 1 – UV
- 1 – Moonlight
Technical Specifications
| Dimensions | |
|---|---|
| Length | 4.88in. (12.4cm) |
| Width | 4.88in. (12.4cm) |
| Height | 1.34in. (3.4cm) |
| Weight | 0.95lbs. (0.43kg) |
| Power Specifications | |
|---|---|
| Power Consumption | 59W at full power |
| Universal Input Range | 100 to 240VAC / 50-60Hz |
| Cable Length | 20ft. (6.1m) |
| PSU Regulatory Compliance | UL, CE & RoHS |
| What’s in the Box |
|---|
| AI Prime® 16HD Reef |
| Power Adapter |
| Quick Start Guide |
